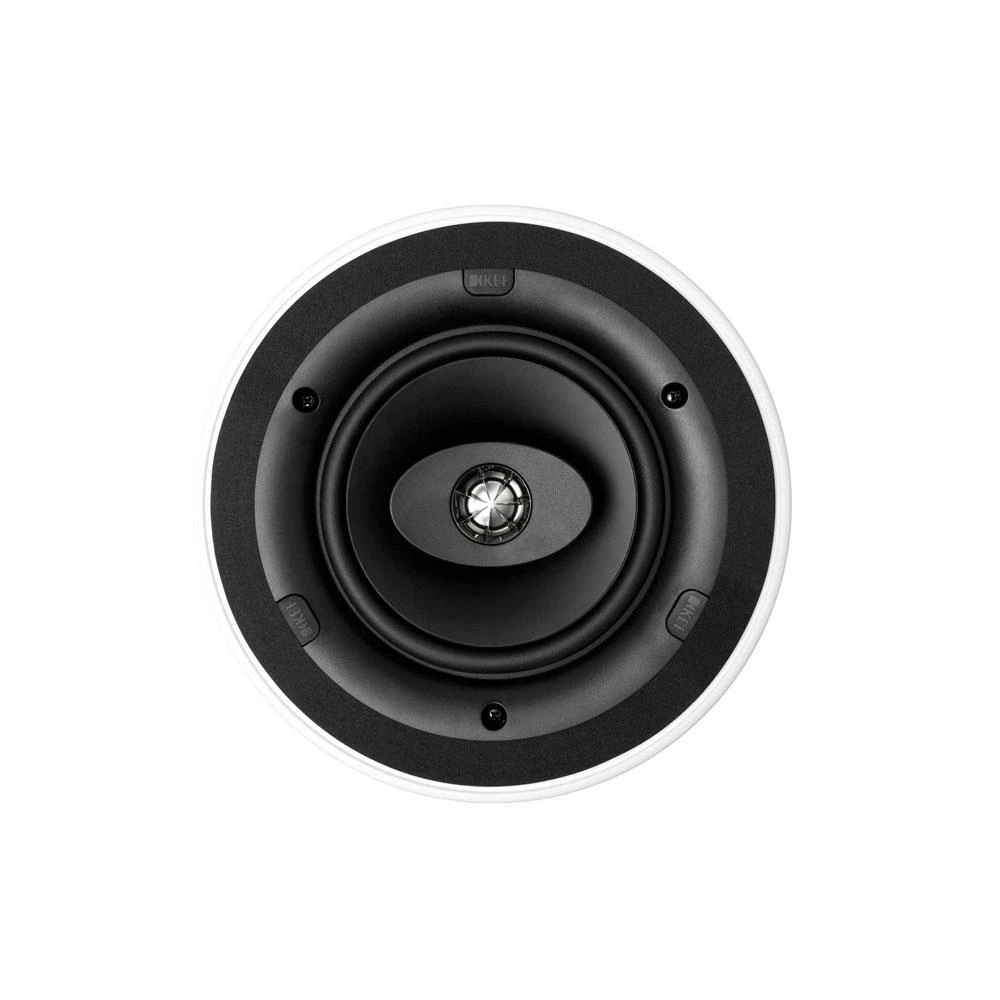

KEF Ci160.2CR In-Ceiling Speaker (Single)

KEF Ci160.2CR In-Ceiling Speaker (Single)

The KEF Ci160.2CR is a discrete in ceiling speaker for any home installation. It’s features allows sound to be dispersed more evenly throughout the room. The extremely shallow mounting depth allows you to install the Ci160.2CR where other speakers in its class just won’t fit.

KEF’s Ci-C Series offers an ideal introduction to the world of custom installation speakers. Featuring KEF’s sophisticated ‘sit anywhere’ Uni-Q driver array, which places the tweeter in the acoustic centre of the bass/midrange cone, this allows both the tweeter and woofer to act as a single point source that disperses the sound widely and evenly throughout the room.

The KEF Ci160,2CR has been designed to be a high-performance shallow mounting speaker for flush mounting on a ceiling. This is the coincidence point source configuration that includes a 16 mm high frequency aluminium dome tweeter mounted in the acoustic core of the 160 mm low-frequency woofer. Kef uses patented Uni-Q ® Technology. The tweeter uses KEF’s Tangerine Waveguide designed to enhance high frequency dispersion, and when coupled with the Uni-Q series, it produces a speaker that provides incredibly smooth and clear sound across a large listening area. The KEF Ci160.2CR is made with weather-resistant materials and the Ultra-Thin Bezel and grille are treated with a UV protective coating making this speaker ideal for background, foreground, and announcement applications in indoor and outdoor venues such as hotel rooms, corridors and school hallways.

View the rest of the KEF Ci Series here.

Key Features

• UTB™ Ultra-Thin Bezel
• 160mm (6.5in.) Uni-Q driver
• 16mm (0.6in.) Aluminium dome tweeter with tangerine waveguide
• Magnetic grille
• Paintable grille and bezel
• Weather Resistant IP64 certified

Specifications

NOMINAL IMPEDANCE
8 Ohms

SENSITIVITY
89dB (2.83V/ 1m)

FREQUENCY RESPONSE
52Hz – 20kHz (±6dB) 2pi/open-backed

CROSSOVER FREQUENCIES
2.5kHz

DRIVE UNITS
LF: 160mm (6.5in.) HF: 16mm (0.6in.)

RECOMMENDED AMPLIFIER POWER
10-100W

PRODUCT EXTERNAL DIMENSIONS
Diameter : 234.6mm (9.24in.) Depth : 88.7mm (3.49in.)

CUT-OUT DIMENSIONS
Diameter : 196mm (7.71in.)

MOUNTING DEPTH FROM SURFACE
Product only : 84.5mm (3.33in.)

OPTIONAL ROUGH IN FRAME
RIF160R

UNIT MEASUREMENT
Piece

NET WEIGHT
1.4kg (3.1lbs)
