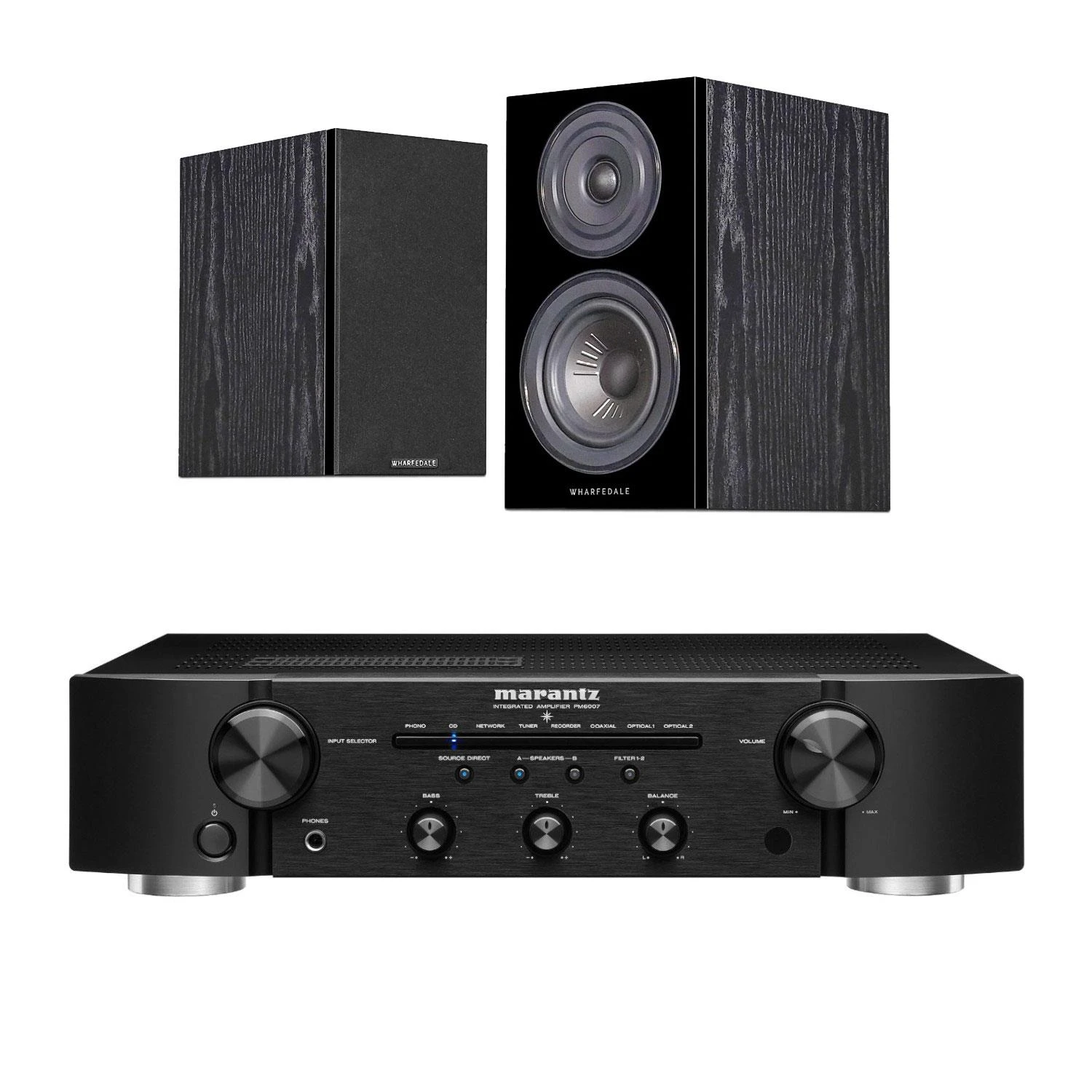

Integrated Amplifier with Digital Connectivity
The Marantz PM6007 Hi-Fi amplifier with built in DAC delivers the most musical sound and is an ideal choice for those ready to take the next step in their 2-channel Hi-Fi system. Powered by a Toroidal power transformer and customized block capacitors, the PM6007 integrated amplifier delivers 45 watts (8ohm, 20Hz-20kHz) of power-per-channel. You can easily connect both analogue and digital sources or connect your turntable to the built-in phono pre-amplifier. Listen to your favourite Hi-Res audio content through the 192-kHz/24-bit D/A converter and experience enhanced bass with a subwoofer-out option.
Integrated Amplifier with Digital Connectivity
The Marantz PM6007 Hi-Fi amplifier with built in DAC delivers the most musical sound and is an ideal choice for those ready to take the next step in their 2-channel Hi-Fi system. Powered by a Toroidal power transformer and customized block capacitors, the PM6007 integrated amplifier delivers 45 watts (8ohm, 20Hz-20kHz) of power-per-channel. You can easily connect both analogue and digital sources or connect your turntable to the built-in phono pre-amplifier. Listen to your favourite Hi-Res audio content through the 192-kHz/24-bit D/A converter and experience enhanced bass with a subwoofer-out option.
Key Features
-
Take your next step in Hi-Fi: The PM6007 integrated current feedback amplifier powers 2x 45W (8 ohms RMS, 20Hz – 20kHz) to offer a refined audio experience.
-
Meticulously and masterfully tuned: During the extensive tuning process, Marantz sound masters carefully refine and curate each component for optimal performance.
-
Wide range of connectivity: Experience Hi-Res audio files exactly as intended through the gold-plated inputs: 5 analogue inputs, one coaxial input and two optical digital inputs.
-
An updated audio experience: The newly updated, high-quality DAC AK4490 offers a richer sound for your enjoyment.
-
Digital filter modes for Optical/Coaxial input: Listen to a more refined audio experience to fit your taste with the new digital filter mode feature.
-
Built to perform: In addition to high-quality speaker terminals with A/B switching capability, a fully-shielded DAC unit, and copper screws, the rigid feet provide a true-to-performance sound.
-
Marantz proprietary HDAM-SA3 circuit: You will experience a wider dynamic range with lower distortion for the output stage.
-
Advanced thermal compensation: No memory distortion for clean and precise audio reproduction even after powerful bass attacks.
-
Customized components for a more refined sound: The Toroidal Transformer and high-quality, customized components deliver exceptional sound quality.
-
Integrated phono input: Featuring a high-quality MM phono pre-amp with FET input to enjoy best signal purity and sound from your favourite vinyl.
-
Deeper bass with a subwoofer output: Enjoy powerful bass by adding a subwoofer, companion bookshelf speakers or even further extend bass with the addition of floor standing speakers.
Current Feedback Amplifier
The Current Feedback Amplifier technology provides wide-bandwidth and high-speed sound reproduction. In combination with the high current power supply, the PM6007’s amplifier section holds a large energy reserve to easily drive even the most demanding speakers. An advanced thermal compensation avoids memory distortion for clean amplification under any circumstances.
Hi-Res Audio
The Current Feedback Amplifier technology provides wide-bandwidth and high-speed sound reproduction. In combination with the high current power supply, the PM6007’s amplifier section holds a large energy reserve to easily drive even the most demanding speakers. An advanced thermal compensation avoids memory distortion for clean amplification under any circumstances.
High Current Power Supply
The power supply supports high current, high speed Shottky Barrier Diodes and high current storage capacitors fed by a Toroidal Transformer that together provide wide dynamic range and low impedance drive capability.
Toroidal Transformer
A Toroidal Transformer has several advantages over a normal EI core transformer. The highly efficient design delivers more power compared to the same size EI core transformer. In addition, the shape of the Toroidal Transformer delivers low electromagnetic radiation and mechanical vibration for better sound quality.
Marantz HDAM-SA3 Technology
Marantz has developed our own discrete circuit boards to replace standard IC’s. These HDAM’s (Hyper Dynamic Amplifier Module) consist of discrete surface mount components with short mirror image L/R signal paths. These devices do exactly the same thing as the Op-amps, but outperform these solutions dramatically in terms of the Slew Rate and reduced noise level, resulting in more dynamic, accurate and detailed sound.
In the PM6007, the HDAM-SA3 circuit improves on its previous module and the idling current stability is less influenced by power transistor temperatures to maintain sound performance even at high level output.
Digital Filter for Optical/Coaxial input
The PM6007 introduces a new digital filter for Optical and Coaxial inputs. This two-mode filter (Filter1/Filter2) allows optimized reproduction of digital music content using the new AK4490 D/A converter to your taste. Filter 1 is a slow roll-off preset that improves deep stereo imaging and Filter 2 is a sharp roll-off filter for more precise imaging reproduction.
Expanded Connectivity for Digital Inputs (2 Optical, 1 Coax) with Hi-Res Audio Support
One Coaxial digital and two Optical digital inputs are now available to connect digital devices and play back Hi-Res audio (up to 192-kHz/24-bit PCM) through the PM6007’s advanced audio circuitry. The complete digital section is fully shielded by an extra metal housing unit to ensure that the digital stage has no effect on the analogue signal.
Subwoofer Output
The PM6007 supports an optional external subwoofer with a fixed low pass cut off frequency at 150Hz. Enjoy accurate bass with no audible peaks or dips, no matter where you place your subwoofer.
Improved Integrated Phono Input
Marantz integrated amplifiers have historically featured high-quality phono stages. The PM6007 remains faithful to that legacy, leveraging the newly designed circuit introduced with the PM7000N — one that integrates a FET (field-effect transistors) in the input stage. This technology delivers high input impedance, eliminates the need for AC coupling capacitors, simplifies the signal path, and lowers distortion and noise which vastly improves the overall signal purity.
Audio-Grade Sound Parts
Marantz maintains a steadfast reputation for choosing the best possible components for its Hi-Fi products, and the PM6007 is built with that same performance-first Hi-Fi approach. Marantz engineers selected and improved the PM6007 versus the previous PM6006 through extensive listening in dedicated Marantz facilities in Europe and Japan using Hi-Fi tuned sound parts. For example, increasing the size of the power supply capacitors by 20% improved stability during high demand listening sessions.
The Most Musical Sound
Engineered and extensively tuned by a team drawing on more than 65 years of Hi-Fi expertise, the PM6007 provides exceptional performance for your audio collection. Whether digital or analog, enjoy the most musical sound from any source.
Diamond 12.1
The true all-rounder, the Wharfedale DIAMOND 12.1 is a traditional standmount (or bookshelf) speaker that embodies the history and performance values of the Wharfedale DIAMOND series.
The perfect ‘affordable’ hi-fi speaker, the DIAMOND 12.1 offers the best of both worlds – compact size with power and detail.
Perfect for 2-channel hi-fi systems, thanks to its intricate performance but also compact and capable for immersive home theatre, the DIAMOND 12.1 is designed and certified to perform, regardless of room size and application.
The DIAMOND 12.1 features a high-performance 130mm (5”) Klarity™ driver for exceptional timing and refined bass. The superb 25mm (1”) woven polyester dome tweeter delivers open and smoothly extended high frequencies.
Klarity affords focus
NEW Klarity™ cone material, formulated from a blend of Polypropylene and mica adds stiffness to reduce flexing, enabling a lightweight cone with high rigidity, low colouration and lightning-fast response.
Low colour and expression
The Klarity™ cone is fitted with a low-damping surround, thereby achieving both low colouration and expressive dynamics. By simulating many different cone shapes and adding ribs to provide further stiffening, a flat response curve was achieved without resorting to a high-damping surround, thereby striking the ideal balance.
A magnet of forces
A precision-made magnet system with an aluminium compensation ring to minimise the effect of variations in inductance as the voice coil travels. This contributes to an absence of distortion and intermodulation generated by the ‘motor system’.
A voice coil beyond this class
The voice coil is wound on a high-power epoxy/glass fibre bobbin highly unusual in speakers at this price level. This has the advantage of not adding eddy currents and delivering greater power handling than an aluminium bobbin, whilst also being much stiffer than the Kapton type associated with this price-class.
Diamond highs
The 25mm dome is made from a woven polyester film with a high-loss coating to deliver open and smoothly extended high frequencies. The magnet system and the front plate have been optimised for wide dispersion and uncompressed behaviour. The front plate is flat and exposes the dome as much as possible; only a very short duct on the front plate balances the acoustic load and improves the SPL (sound pressure level) measurement.
A crossover of style
The crossover network uses an acoustic LKR 24dB topology. This includes air-core inductors of the type more commonly found in high-end speakers, selected because they produce the lowest distortion of all inductor types. As the resistance of the coil is higher than a standard laminated steel or ferrite core inductor, the magnetic structure of the mid/bass driver has been modified to compensate, resulting in fast, clean bass with no distortion from the inductor.
Firm and fair
The DIAMOND 12.1 ’s rear-ported enclosure is precisely sized so that the internal volume works in harmony with the drive unit system to deliver the desired sonic result. A multi-layered sandwich design subdues the identifiable characteristics of the cabinet’s ‘sound’. Even the resonant properties of the glue between the layers was measured to determine the optimum combination.
Brace yourself
Inside the cabinet, Intelligent Spot Bracing connects opposite walls with a specific form of the wood brace to achieve an optimal reduction of cabinet resonance. These braces are precisely modelled by computer simulation to improve upon the commonplace ‘figure of eight’ brace, which may simply transfer resonance from one wall to another.
Integrated Amplifier with Digital Connectivity
The Marantz PM6007 Hi-Fi amplifier with built in DAC delivers the most musical sound and is an ideal choice for those ready to take the next step in their 2-channel Hi-Fi system. Powered by a Toroidal power transformer and customized block capacitors, the PM6007 integrated amplifier delivers 45 watts (8ohm, 20Hz-20kHz) of power-per-channel. You can easily connect both analogue and digital sources or connect your turntable to the built-in phono pre-amplifier. Listen to your favourite Hi-Res audio content through the 192-kHz/24-bit D/A converter and experience enhanced bass with a subwoofer-out option.
Key Features
-
Take your next step in Hi-Fi: The PM6007 integrated current feedback amplifier powers 2x 45W (8 ohms RMS, 20Hz – 20kHz) to offer a refined audio experience.
-
Meticulously and masterfully tuned: During the extensive tuning process, Marantz sound masters carefully refine and curate each component for optimal performance.
-
Wide range of connectivity: Experience Hi-Res audio files exactly as intended through the gold-plated inputs: 5 analogue inputs, one coaxial input and two optical digital inputs.
-
An updated audio experience: The newly updated, high-quality DAC AK4490 offers a richer sound for your enjoyment.
-
Digital filter modes for Optical/Coaxial input: Listen to a more refined audio experience to fit your taste with the new digital filter mode feature.
-
Built to perform: In addition to high-quality speaker terminals with A/B switching capability, a fully-shielded DAC unit, and copper screws, the rigid feet provide a true-to-performance sound.
-
Marantz proprietary HDAM-SA3 circuit: You will experience a wider dynamic range with lower distortion for the output stage.
-
Advanced thermal compensation: No memory distortion for clean and precise audio reproduction even after powerful bass attacks.
-
Customized components for a more refined sound: The Toroidal Transformer and high-quality, customized components deliver exceptional sound quality.
-
Integrated phono input: Featuring a high-quality MM phono pre-amp with FET input to enjoy best signal purity and sound from your favourite vinyl.
-
Deeper bass with a subwoofer output: Enjoy powerful bass by adding a subwoofer, companion bookshelf speakers or even further extend bass with the addition of floor standing speakers.
Current Feedback Amplifier
The Current Feedback Amplifier technology provides wide-bandwidth and high-speed sound reproduction. In combination with the high current power supply, the PM6007’s amplifier section holds a large energy reserve to easily drive even the most demanding speakers. An advanced thermal compensation avoids memory distortion for clean amplification under any circumstances.
Hi-Res Audio
The Current Feedback Amplifier technology provides wide-bandwidth and high-speed sound reproduction. In combination with the high current power supply, the PM6007’s amplifier section holds a large energy reserve to easily drive even the most demanding speakers. An advanced thermal compensation avoids memory distortion for clean amplification under any circumstances.
High Current Power Supply
The power supply supports high current, high speed Shottky Barrier Diodes and high current storage capacitors fed by a Toroidal Transformer that together provide wide dynamic range and low impedance drive capability.
Toroidal Transformer
A Toroidal Transformer has several advantages over a normal EI core transformer. The highly efficient design delivers more power compared to the same size EI core transformer. In addition, the shape of the Toroidal Transformer delivers low electromagnetic radiation and mechanical vibration for better sound quality.
Marantz HDAM-SA3 Technology
Marantz has developed our own discrete circuit boards to replace standard IC’s. These HDAM’s (Hyper Dynamic Amplifier Module) consist of discrete surface mount components with short mirror image L/R signal paths. These devices do exactly the same thing as the Op-amps, but outperform these solutions dramatically in terms of the Slew Rate and reduced noise level, resulting in more dynamic, accurate and detailed sound.
In the PM6007, the HDAM-SA3 circuit improves on its previous module and the idling current stability is less influenced by power transistor temperatures to maintain sound performance even at high level output.
Digital Filter for Optical/Coaxial input
The PM6007 introduces a new digital filter for Optical and Coaxial inputs. This two-mode filter (Filter1/Filter2) allows optimized reproduction of digital music content using the new AK4490 D/A converter to your taste. Filter 1 is a slow roll-off preset that improves deep stereo imaging and Filter 2 is a sharp roll-off filter for more precise imaging reproduction.
Expanded Connectivity for Digital Inputs (2 Optical, 1 Coax) with Hi-Res Audio Support
One Coaxial digital and two Optical digital inputs are now available to connect digital devices and play back Hi-Res audio (up to 192-kHz/24-bit PCM) through the PM6007’s advanced audio circuitry. The complete digital section is fully shielded by an extra metal housing unit to ensure that the digital stage has no effect on the analogue signal.
Subwoofer Output
The PM6007 supports an optional external subwoofer with a fixed low pass cut off frequency at 150Hz. Enjoy accurate bass with no audible peaks or dips, no matter where you place your subwoofer.
Improved Integrated Phono Input
Marantz integrated amplifiers have historically featured high-quality phono stages. The PM6007 remains faithful to that legacy, leveraging the newly designed circuit introduced with the PM7000N — one that integrates a FET (field-effect transistors) in the input stage. This technology delivers high input impedance, eliminates the need for AC coupling capacitors, simplifies the signal path, and lowers distortion and noise which vastly improves the overall signal purity.
Audio-Grade Sound Parts
Marantz maintains a steadfast reputation for choosing the best possible components for its Hi-Fi products, and the PM6007 is built with that same performance-first Hi-Fi approach. Marantz engineers selected and improved the PM6007 versus the previous PM6006 through extensive listening in dedicated Marantz facilities in Europe and Japan using Hi-Fi tuned sound parts. For example, increasing the size of the power supply capacitors by 20% improved stability during high demand listening sessions.
The Most Musical Sound
Engineered and extensively tuned by a team drawing on more than 65 years of Hi-Fi expertise, the PM6007 provides exceptional performance for your audio collection. Whether digital or analog, enjoy the most musical sound from any source.
Diamond 12.1
The true all-rounder, the Wharfedale DIAMOND 12.1 is a traditional standmount (or bookshelf) speaker that embodies the history and performance values of the Wharfedale DIAMOND series.
The perfect ‘affordable’ hi-fi speaker, the DIAMOND 12.1 offers the best of both worlds – compact size with power and detail.
Perfect for 2-channel hi-fi systems, thanks to its intricate performance but also compact and capable for immersive home theatre, the DIAMOND 12.1 is designed and certified to perform, regardless of room size and application.
The DIAMOND 12.1 features a high-performance 130mm (5”) Klarity™ driver for exceptional timing and refined bass. The superb 25mm (1”) woven polyester dome tweeter delivers open and smoothly extended high frequencies.
Klarity affords focus
NEW Klarity™ cone material, formulated from a blend of Polypropylene and mica adds stiffness to reduce flexing, enabling a lightweight cone with high rigidity, low colouration and lightning-fast response.
Low colour and expression
The Klarity™ cone is fitted with a low-damping surround, thereby achieving both low colouration and expressive dynamics. By simulating many different cone shapes and adding ribs to provide further stiffening, a flat response curve was achieved without resorting to a high-damping surround, thereby striking the ideal balance.
A magnet of forces
A precision-made magnet system with an aluminium compensation ring to minimise the effect of variations in inductance as the voice coil travels. This contributes to an absence of distortion and intermodulation generated by the ‘motor system’.
A voice coil beyond this class
The voice coil is wound on a high-power epoxy/glass fibre bobbin highly unusual in speakers at this price level. This has the advantage of not adding eddy currents and delivering greater power handling than an aluminium bobbin, whilst also being much stiffer than the Kapton type associated with this price-class.
Diamond highs
The 25mm dome is made from a woven polyester film with a high-loss coating to deliver open and smoothly extended high frequencies. The magnet system and the front plate have been optimised for wide dispersion and uncompressed behaviour. The front plate is flat and exposes the dome as much as possible; only a very short duct on the front plate balances the acoustic load and improves the SPL (sound pressure level) measurement.
A crossover of style
The crossover network uses an acoustic LKR 24dB topology. This includes air-core inductors of the type more commonly found in high-end speakers, selected because they produce the lowest distortion of all inductor types. As the resistance of the coil is higher than a standard laminated steel or ferrite core inductor, the magnetic structure of the mid/bass driver has been modified to compensate, resulting in fast, clean bass with no distortion from the inductor.
Firm and fair
The DIAMOND 12.1 ’s rear-ported enclosure is precisely sized so that the internal volume works in harmony with the drive unit system to deliver the desired sonic result. A multi-layered sandwich design subdues the identifiable characteristics of the cabinet’s ‘sound’. Even the resonant properties of the glue between the layers was measured to determine the optimum combination.
Brace yourself
Inside the cabinet, Intelligent Spot Bracing connects opposite walls with a specific form of the wood brace to achieve an optimal reduction of cabinet resonance. These braces are precisely modelled by computer simulation to improve upon the commonplace ‘figure of eight’ brace, which may simply transfer resonance from one wall to another.
Features | |
| Channels | 2 |
| Current Feedback Topology | Yes |
| Full balanced circuitry architecture | No |
| Double Mono Power Amp construction | No |
| Phono EQ: Standard / Marantz Musical / Marantz Musical Premium | Yes / No / No |
| Digital in: USB-B / optical / coaxial / USB-A | No / 2 / 1 / No |
| Sample Rate digital In | 192 kHz / 24-bit |
| USB-A: DSD / WAV / FLAC / AIFF / ALAC | No |
| USB-B DSD Audio Streaming (DoP): DSD2.8 / DSD5.6 | No |
| USB-B PCM sample rate | No |
| DAC chip | AK4490 |
| Asynchronous mode rear USB | No |
| Bit-perfect transmission | No |
| Ground isolator for DAC Mode operation | No |
| Tuner: DAB / DAB+ / FM (RDS) | No |
| Bluetooth / aptX / NFC | No |
| Streaming audio from PC | No |
| Wi-Fi / Wired LAN | No |
| Internet radio | No |
| AirPlay 2 | No |
| Roon Tested | No |
| Spotify Connect* / Tidal* / Deezer* / others * | No |
| Amazon Prime Music* / Pandora* | No |
| HEOS Multiroom and Streaming | No |
| Voice Control – Works with Amazon Alexa | No |
| Voice Control – Google Assist / Apple Siri | No |
| Voice Control – Microphone built-in | No |
| DSD-Audio network streaming | No |
| Lossy formats: MP3 / WMA / AAC | No |
| Lossless formats: DSD / FLAC HD 192/24 / ALAC 96/24 / WAV 192/24 / AIFF | No |
| Gapless Playback | No |
| Remote APP: iDevice / Android | No |
| Analog Mode | No |
| HDAM version | SA3, SA2 |
| Power Transformer: Toroidal / El | Yes / No |
| High Grade Audio Components | Yes |
| Customised Components | Yes |
| Symmetric PCB Layout | No |
| Aluminium extrusion heat sink | Yes |
| Copper Plated Chassis | No |
| Tri Tone Control (Bass / Mid / Treble) | No |
| Balance / Bass / Treble / Loudness | Yes / Yes / Yes / No |
Others | |
| Marantz Musical Digital Filtering | Yes |
| Linear Drive Power Supply | Yes |
| Liniear volume control | Yes |
| BI-AMP and Multichannel option | No |
| Shottky diodes | Yes |
| Input buffer amp (all inputs / CD only) | No / No |
| System block shielding: Copper / metal / none | No / No / Yes |
| Double Layer Bottom Plate | No |
| Low Noise OELD display | No |
| Low noise LCD display | No |
| Source Direct | Yes |
| Power Amp direct | No |
| 5mm aluminium top plate | No |
Inputs/Outputs | |
| Audio Inputs | 5 |
| Digital in: USB-B / optical / coaxial / USB-A | No / 2 / 1 / No |
| Phono Input: MM / MC | Yes / No |
| Audio Outputs | 1 |
| Balanced In / Out | No / No |
| Pre-out / Main-in | subwoofer / No |
| Power Amp Direct IN | No |
| HDMI: inputs / outputs | No |
| Gold Plated Cinch | Yes |
| Speaker A / B | Yes |
| Speaker Terminals | Metal (Gold) Screw |
| Number of terminals | 4 |
| D-Bus | Yes |
| Floating Control Bus (3.5 mm mono jack x 2) | No |
| Headphone Out | Yes |
| Headphone Gain Control (low / mid / high) | No |
Specifications | |
| Power Output (8 / 4 Ohm RMS) | 45 W / 60 W |
| Frequency response | 10 Hz – 70 kHz |
| Total Harmonic Distortion | 0.08% |
| Damping Factor | 100 |
| Input Sensitivity: MM | 2.2 mV / 47 kOhm |
| Input Sensitivity: MC | No |
| Signal to Noise Ratio: MM/MC | 83 dB / No |
| Input Sensitivity: High level | 200 mV / 20 kOhm |
| Input Sensitivity: Balanced High level | No |
| Signal to Noise Ratio: High level | 102dB(2V input) |
| Input Sensitivity: Power Amp Direct IN | No |
| Signal to Noise Ratio: Power Amp Direct IN | No |
General | |
| Available Colors: Gold / Silver / Black / Silver-Gold | No / No / Yes / Yes |
| Metal Front Panel | Yes |
| Power Consumption in W | 155 |
| Standby Consumption in W | 0.3 |
| Auto Power off | Yes |
| Detachable Power Cable | Yes |
| Remote Control | RC004MCD |
| System Remote Function | Yes |
| Maximum Dimensions (W x D x H) in mm | 440 x 370 x 105 |
| Weight in kg | 7.6 |
| Carton Maximum Dimensions (W x D x H) in mm | 517 x 189 x 468 |
| Carton Weight (inc. product) in kg | 9.7 |
| General description | 2-way bookshelf speaker |
|---|---|
| Enclosure type | bass re?ex |
| Transducer complement | 2-way |
| Bass driver | 5″(130mm) advanced PP Cone |
| Treble driver | 1″(25mm) Textile Dome |
| AV shield | No |
| Sensitivity(2.83V @ 1m) | 88dB |
| Recommended ampli?er power | 20-100W |
| Peak SPL | 96dB |
| Nominal impedance | 😯 Compatible |
| Minimum impedance | 4.0O |
| Frequency response(+/-3dB) | 65Hz ~ 20kHz |
| Bass extension(-6dB) | 60Hz |
| Crossover frequency | 2.6kHz |
| Cabinet Volume (in litres) | 8.2L |
| Dimensions ( H x W x D ) | 312 x 180mm x (250+28) mm |
| Net weight | 6.8kg/pcs |
Be the first to review “Marantz PM6007 AmplifierWharfedale Diamond 12.1 Speakers”
Related products
DACs / Headphone Amps
All In One Music Systems
HI-FI
Reviews
There are no reviews yet.
