Michell Tecnodec MM Package Turntable

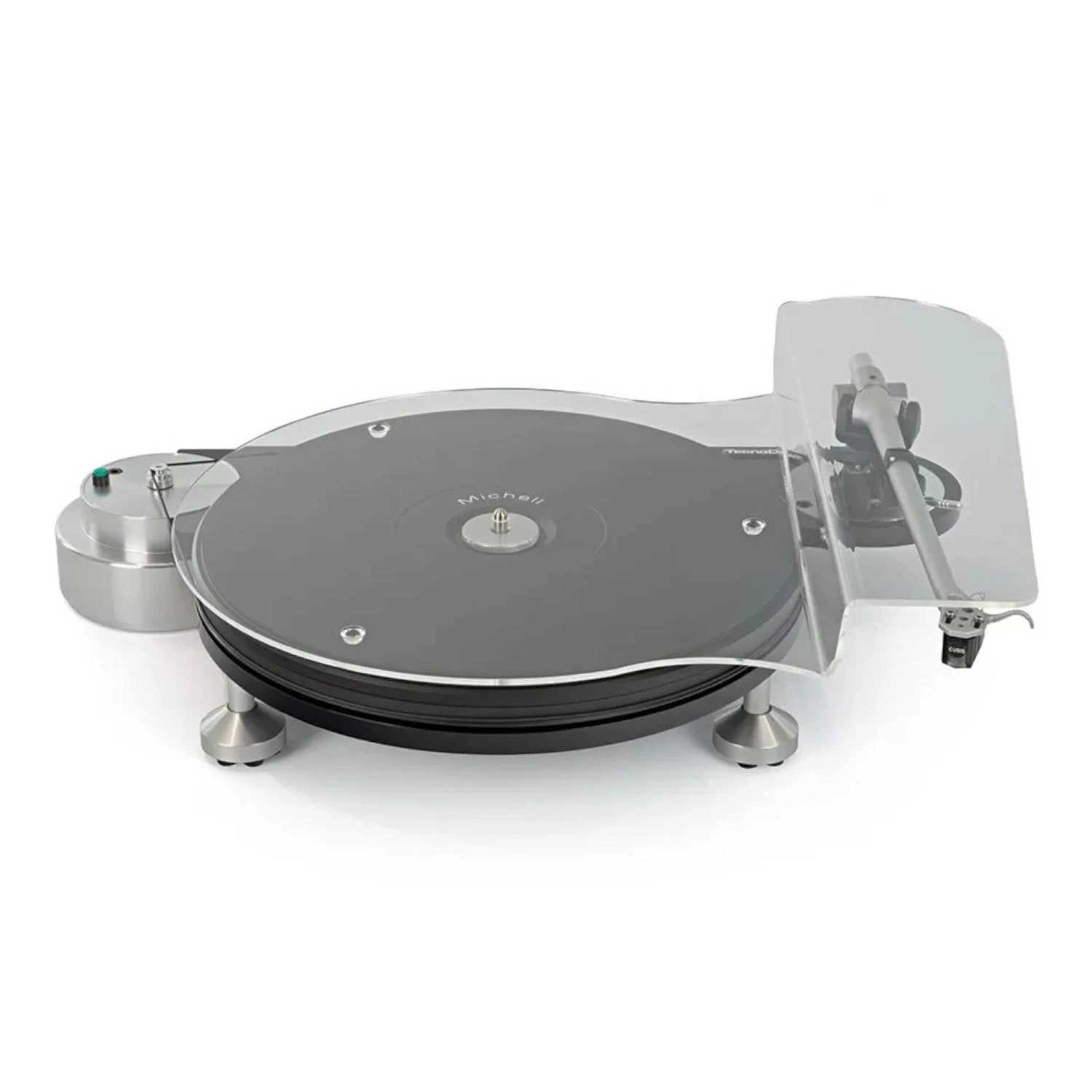

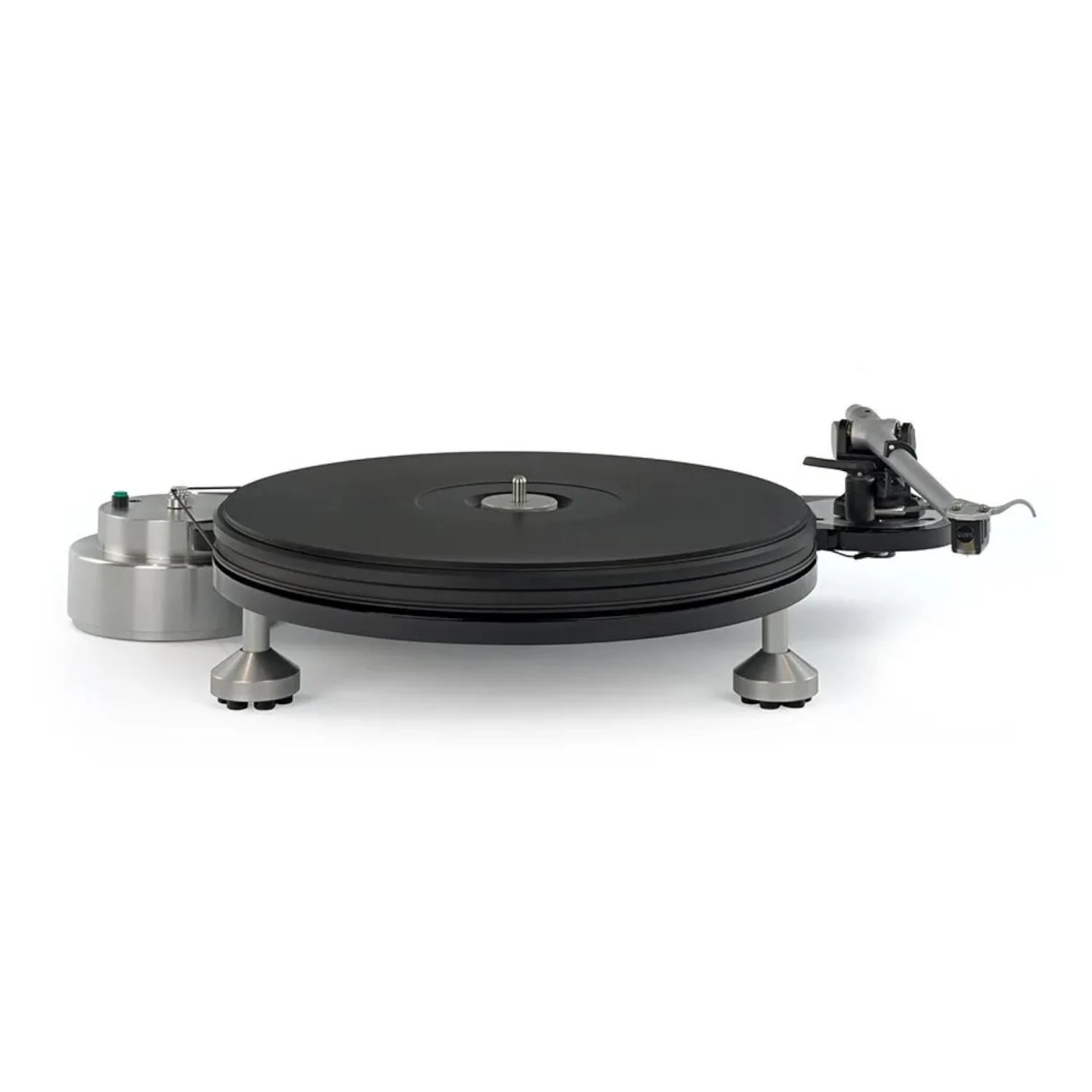

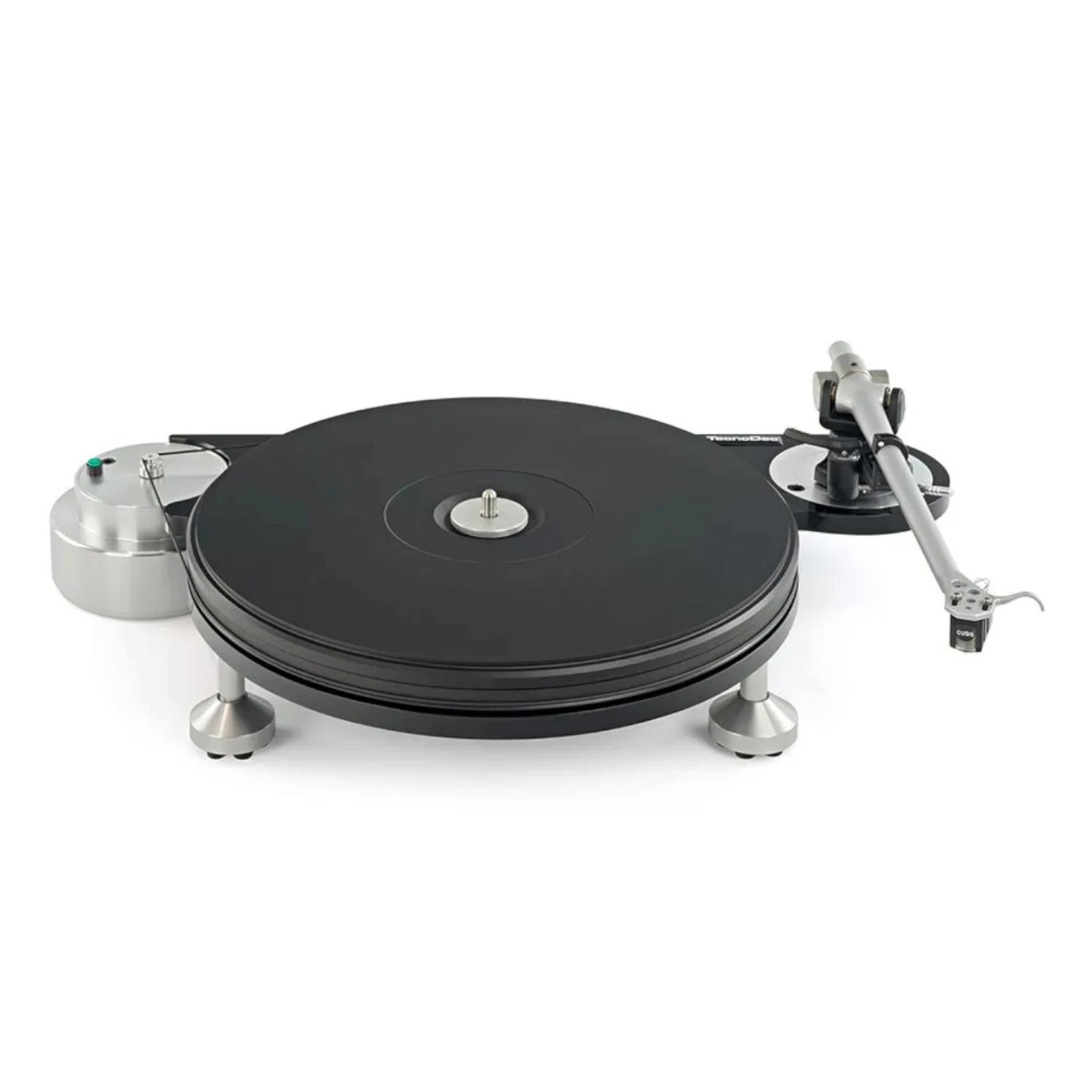

Michell TecnoDec

The TecnoDec is Michell’s entry-level turntable, and shares many features developed for its bigger sibling, the GyroDec, such as the vibration dampening, impedance-matched platter, inverted oil circulating main bearing and a free-standing motor unit.

TecnoDec is an unsuspended turntable that utilises materials and technologies not normally found in entry level turntables, allowing you hear much more from your music.

Pure Sorbothane feet inserts.

Designed to isolate the turntable from structural vibration in the supporting surface.

Impedance-matched platter.

The platter material was chosen for its vibration dampening characteristics and because sonically it is a very similar material to vinyl, so it has a very neutral sound characteristic.

Free standing motor unit.

Machined from a solid billet of aircraft grade aluminium, the turntable motor unit is designed to minimise any transfer of tiny vibrations created when the motor is running, to the sensitive parts of the turntable. When in operation the only connection between the motor and the rest of the turntable, is the drive belt turning the platter. This innovation lifts the performance of the TecnoDec and sets it apart from the competition.

Inverted oil circulating main bearing.

Contrary to traditional designs, the main bearing has the point of rotation at the top of the assembly, not at the bottom. This orientation allows us to fully lubricate the inside of the entire bearing while the platter is turning. achieve this by way of a modified Archimedean screw that Michell machine into the inside bore of the bearing. The oil is drawn from a reservoir at the base of the main bearing up to the thrust ball at the top, fully lubricating as it goes, it then returns to the reservoir via a waste hole drilled into the bearing spindle. Lubricating the precision parts of the main bearing in this way means that any potential for noise or vibration created by the rotation of the platter is avoided.

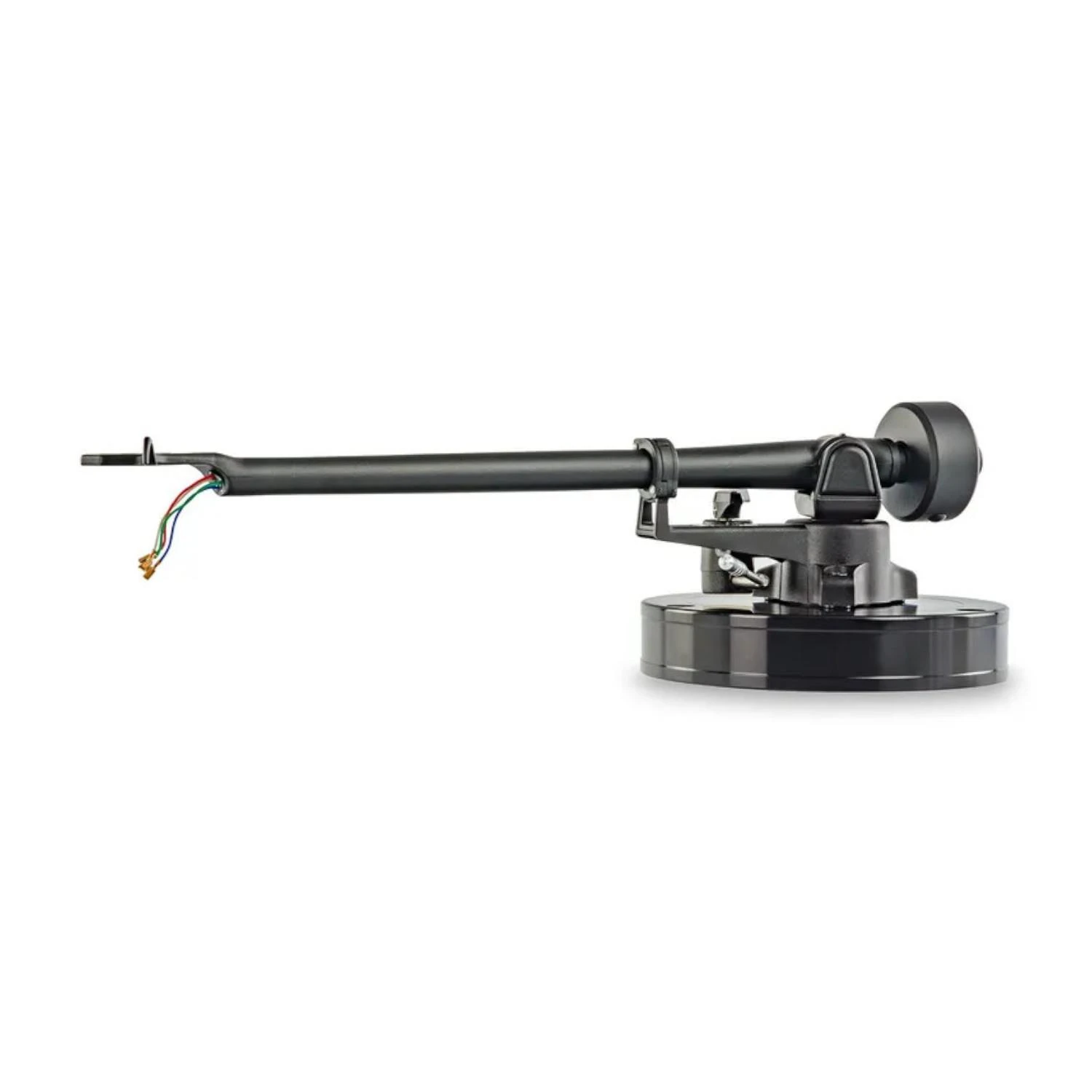

Michell T2 Tonearm

The latest T2 Tonearm design takes full advantage of a brand new arm tube and the current three point arm mounting system. Each T2 is meticulously hand assembled, creating a precision crafted tonearm achieving extremely low friction levels and performance way beyond the expectations of a product at this price point.

The T2 uses a custom one piece, aluminium arm tube, carefully manufactured to optimise performance and reduce stress on the ultra low friction polymer bearings. Each tonearm is meticulously hand assembled using custom made tools and torque settings to guarantee optimum performance. This level of care ensures perfect track-ing and maximises the amount of information the cartridge can extract from the record surface. The T2 now employs the same wiring as the T3, and has low capacitance phono cables terminated in high quality Neutrik phono plugs.

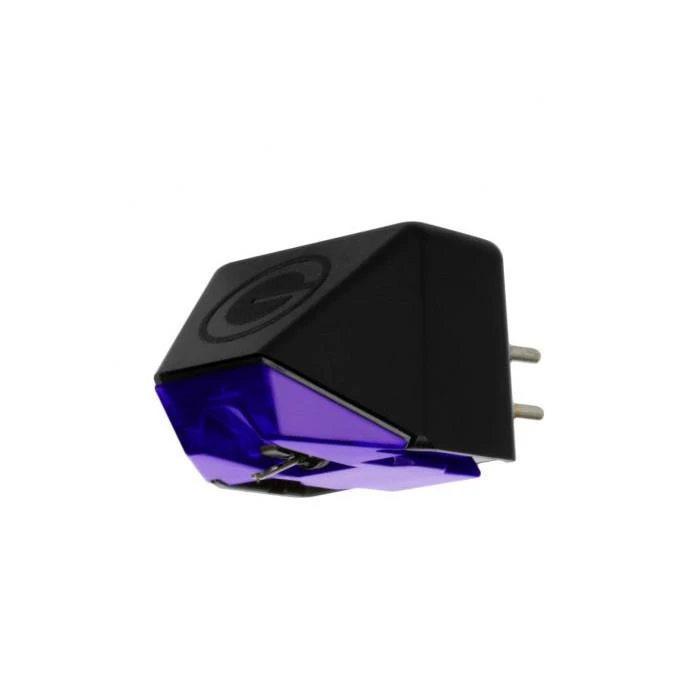

Goldring E3

The Goldring philosophy is to promote the accurate replication of the original record production, maintaining the creative nuances, musicality and rhythm the artist intended you to hear. With the versatile E Series, this is easy to achieve; each is designed to be simple to fit to the majority of budget to medium priced turntables.

The E3 cartridge, representing the top of the range features the same aluminium cantilever as the E2, but benefits from a superior, bonded, super-elliptical (0.3 x 0.7 mil) stylus. This gives it better high frequency detail retrieval over ordinary elliptical (0.4 x 0.7 mil) or spherical (0.6 mil) types due to its smaller front-to-back radius. The main effect is the reduction of sibilance, especially in high level vocal recordings

Magnetic Duplex Technology™

All cartridges in the range feature Magnetic Duplex Technology™-a ‘dual magnet’ generator assembly with an identical geometry to that of the original cutting head. This means it can more accurately reproduce the stereo information in the record groove, providing better channel separation and a more involving and musical sound stage.

Expert Adjustment

The E-series cartridges have been designed to allow micro-adjustments to be made during production using a special adjustment screw. This means the cartridge can be safely installed in a typical turntable because the angle that the stylus makes with the record surface has been pre-set. The result is an optimised channel balance with zero degrees of horizontal tracking adjustment required. This ensures a consistent and reassuring performance for the life of the product.

Stylus/Cantilever

Featuring spherical styli with a choice of cantilevers, the E1 and E2 models are ideal as an upgrade to any budget, pre-fitted or obsolete cartridge. The E3 model with its re­fined super elliptical stylus is a worthwhile upgrade for those wishing to squeeze even more information and detail from the record groove.
