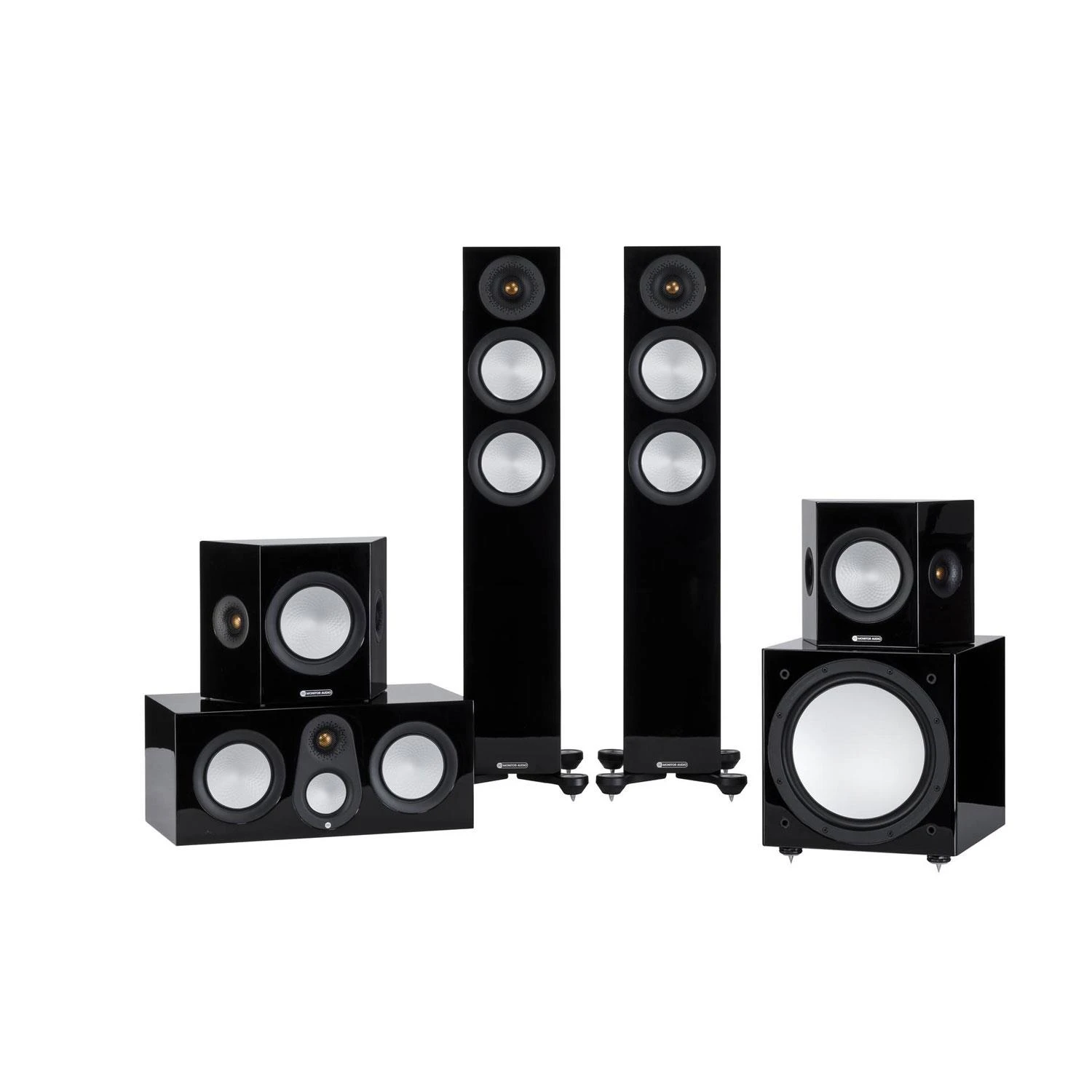

Monitor Audio Silver 200 7G Cinema 5.1 Speaker Package

Silver 7G

The soundtracks you love are now richer and more vibrant than ever, thanks to the Monitor Audio Silver C250 7G. It gives you clear, articulate dialogue of a cinema speaker set-up in a compact shape that’s perfectly at home in your living room. Needless to say, it features the latest Silver Series innovations, including new Rigid Surface Technology (RST) II for ultra-clear sound. As the centrepiece of your home theatre, it envelops you in superbly detailed sound that makes you feel like you’re right there in the middle of the action.

Key Features

• 1 x 1” (25mm) C-CAM Gold Dome tweeter with Uniform Dispersion (UD) Waveguide II for more lifelike sound
• 1 x 3” (76mm) C-CAM mid-range driver with Rigid Surface Technology (RST) II for extra clarity
• 2 x 5¼” (134mm) C-CAM bass driver with RST II for extra clarity
• Compact full 3-way design offering a wider coverage than traditional two way centre speakers for the best cinema experience in more seating locations
• Perfect for all sizes of home cinema systems
• Combining the best of the small Silver C150 6G and large Silver C350 6G, for high performance with a compact footprint
• Sealed cabinet for precise sound even when installed close to a wall
• Fits easily on shelves or wall units with the rubber stopper feet supplied

Silver 7G

To create a truly immersive cinema experience, you need every part to work in harmony. These dedicated FX speakers give you the full 360-degree experience, providing the ideal complement to the rest of your set-up. While your main speakers do the heavy lifting, a pair of Silver FX 7G surround sound speakers add a world of depth and complexity to what you see and hear. Understated and unassuming, they have a simple magnetic grille for the cleanest possible look and the most unfussy performance. Aesthetically speaking, they couldn’t be simpler. It’s only the sound that’s beautiful in its complexity.

Key Features

• 2 x 1” (25 mm) C-CAM Gold Dome tweeter with Uniform Dispersion (UD) Waveguide II for more lifelike sound
• 1 x 6” (152mm) C-CAM mid-bass driver with Rigid Surface Technology (RST) II for extra clarity
• Angled baffles for optimal dispersion
• Discreet design with flush wall placement and recessed terminations
• Dedicated keyhole wall-mounts included for easy installation
• Switchable di-pole/bi-pole configuration especially for home cinema systems
• Sealed cabinet – for accurate performance when installed in restricted voids or close to a wall
• Monitor Audio is one of very few brands making dedicated effects speakers
• Only available in Gloss Black or Satin White finishes

Silver W12

The Monitor Audio Silver Series W12 subwoofer delivers seismic bass right down to 22 Hz using a powerful, long throw 12-inch driver. The Silver W-12’s over-specified driver assembly employs a hugely powerful magnet system and massive voice coil to deliver immense power from the compact sealed cabinet. A heavy-duty diecast basket not only holds the massive system rigidly together, but also assists thermal sinking to keep the driver cool.

For the Silver W-12 subwoofer Monitor Audio specified a 500-watt Class-D amplifier and power-supply module from highly-regarded amplifier specialist Hypex; this provides incredible headroom and utilises advanced switch-mode power conversion techniques. A powerful DSP has been employed to deliver the best performance and filter characteristics, while running the unique APC (Automatic Position Correction) system. The APC is a completely in-house development, designed to automatically correct for room modes. It uses a microphone and test tones to calculate detrimental room modes and correct frequency response, optimising it for the room and position. This is a simple and quick automated process that is a complete revelation to the installer and ensures the user can enjoy the subwoofer quality without positioning restrictions.

At the heart of the Silver W-12 lies a sophisticated 32-bit micro-controller, monitoring performance thousands of times per second, ensuring the system can deliver the best possible bass. It will never become over-driven or distorted, even at maximum power.

Technology

• Ultra long-throw 12-inch driver featuring ‘dished’ C-CAM cone
• Triple suspension for ultimate linearity ensuring control at high power and excursions
• Oversized black anodised 3-inch voice coil which provides high power-handling and low distortion
• Powerful 500 W RMS Class-D amplifier with switching power supply provides instantaneous delivery of high current when required
• DSP processing with all control features and crossover performed digitally
• Automatic Position Correction plus automatic room setup feature using microphone for simple system optimisation
• USB for firmware updates
• Three preset EQ mode settings (Music, Movie, Impact)
• 12 V trigger provides switching control from AV amp or processor
• Solid 25 mm-thick (1-inch) MDF cabinet construction
• Heavy radial cabinet bracing
• Top-mounted control panel and mic. input for easy access to main features
• Selected premium-quality wood veneers in high-gloss lacquer and Satin White finishes
