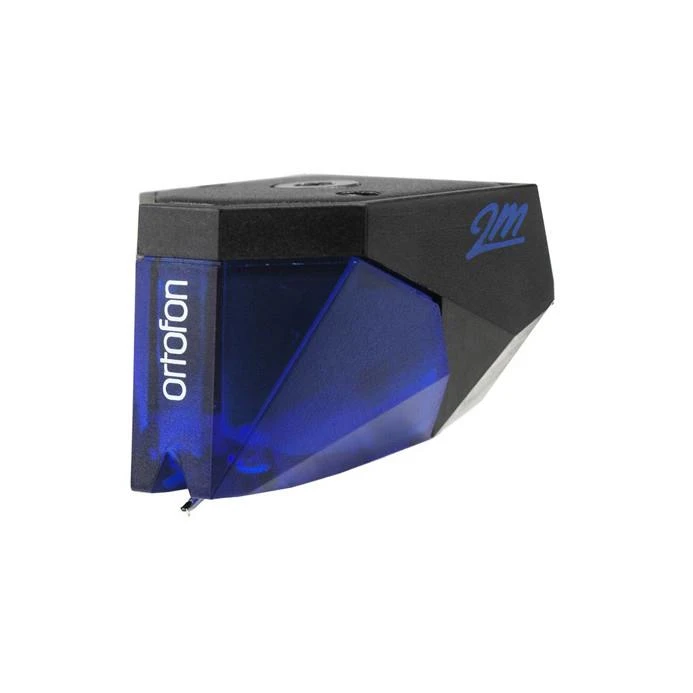

Ortofon 2m Blue M/M Cartridge

Ortofon 2m Blue M/M Cartridge

The 2M headshell is a practical and elegant solution for our customers who wish direct and easy mounting and replacement on their S-shaped tonearm. The combination of 2M Headshell and 2M Series cartridge adds unique distinction to the turntable!

Features:
– Universal mount fitting a wide range of S-shaped tonearms.
– Weight with a 2M cartridge pre-mounted 20 g.
– The headshell body is manufactured from a special compound used for Medical industry, ensures high rigidity while reducing unwanted vibration
– Elegant hi-tech design

2M Blue Technical data
Output voltage at 1000 Hz, 5cm/sec.  –   5,5 mV
Channel balance at 1 kHz  –   1,5 dB
Channel separation at 1 kHz  –  25 dB
Channel separation at 15 kHz  – 15 dB
Frequency range at – 3dB  –  20-25.000 Hz
Frequency response  –  20-20.000 Hz + 2 / – 1 dB
Tracking ability at 315Hz at recommended tracking force  –  80 µm
Compliance, dynamic, lateral  –  20 µm/mN
Stylus type  –  Nude Elliptical
Stylus tip radius  –  r/R 8/18 µm
Tracking force range  –  1,6-2,0g (16-20 mN)
Tracking force, recommended  –  1,8 g (18 mN)
Tracking angle  –  20°
Internal impedance, DC resistance  –  1,3 kOhm
Internal inductance  –  700 mH
Recommended load resistance  – 47 kOhm
Recommended load capacitance  –  150-300 pF
Cartridge colour, body/stylus  –  Black/Blue
Cartridge weight  –  7,2 g
2M PnP MkII cartridge with integrated headshell weight  –  20 g
2M PnP MkII cartridge with integrated headshell length – 52 mm
Replacement stylus unit  – 2M Blue (interchangeable with 2M Red and 2M Silver)
