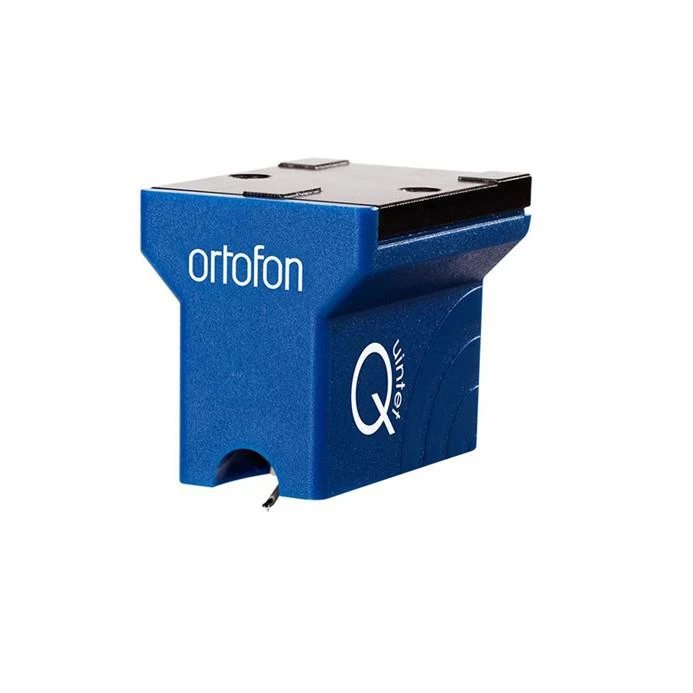

Ortofon Quintet Blue M/C Cartridge

Ortofon Quintet Blue M/C Cartridge

The Quintet Blue is a very homogeneous cartridge
The Quintet Blue’s sound image will tend to more smooth reproduction compared to Quintet Red and moderate dynamic strength compared to Quintet Bronze.

It features a Nude Elliptical diamond mounted on an aluminium cantilever.

The Quintet Blue will bring more space, depth and detail into the sound and is a very good choice for any kind of music, especially rhythmic.

MC Quintet Blue Technical data
Output voltage at 1 kHz 5 cm/sec – 0.5 mV
Channel balance – < 1.5 dB
Channel separation at 1 kHz – > 21 dB
Channel separation at 15 kHz – > 14 dB
Frequency range at -3 dB – 20-25.000 Hz
Frequency response 20-20.000 Hz – +/-2.5 dB
Tracking ability at 315 Hz at recommended tracking force *) – 70 µm
Compliance, dynamic, lateral – 15 µm/mN
Stylus type – Nude Elliptical
Stylus tip radius – r/R 8/18 µm
Tracking force range – 2.1-2.5 g (21-25 mN)
Tracking force recommended – 2.3 g (23 mN)
Tracking angle – 20º
Internal impedance, DC resistance – 7 Ohm
Recommended load impedance – >20 Ohm
Cartridge body material – ABS/Aluminium
Coil wire material – Pure 4-nines copper
Cartridge colour – Blue
Cartridge weight – 9 g

*) Typical value
