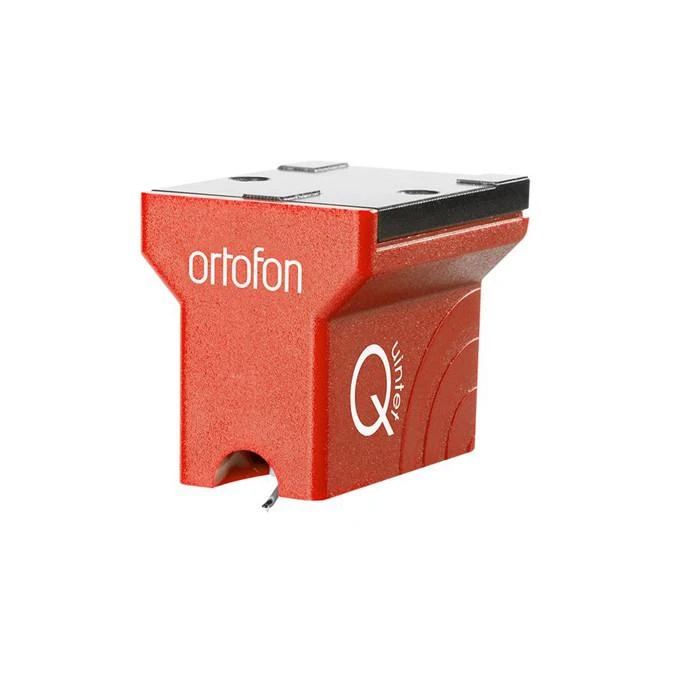

Ortofon Quintet Red M/C Cartridge

Ortofon Quintet Red M/C Cartridge

Enter the Exclusive world of Ortofon’s famous moving coil sound!
The Quintet Red is a perfect introduction to the world of Ortofon moving coils.
It features an Elliptical diamond which is cut and polished to Ortofon’s standards.

This entry-level MC cartridge has very high price-to-performance ratio and is a perfect all-rounder for the newcomers to the world of Moving Coil cartridges.

MC Quintet Red is an all-purpose cartridge that delivers open, dynamic sound with a slight touch of warmth.

MC Quintet Red Technical data
Output voltage at 1 kHz 5 cm/sec – 0.5 mV
Channel balance – < 1.5 dB
Channel separation at 1 kHz – > 21 dB
Channel separation at 15 kHz – > 14 dB
Frequency range at -3 dB – 20 – 25.000Hz
Frequency response 20-20.000 Hz – +/-2.5 dB
Tracking ability at 315 Hz at recommended tracking force *) – 65 µm
Compliance, dynamic, lateral – 15 µm/mN
Stylus type – Elliptical
Stylus tip radius – r/R 8/18 µm
Tracking force range – 2.1-2.5 g (21-25 mN)
Tracking force recommended – 2.3 g (23 mN)
Tracking angle – 20º
Internal impedance, DC resistance – 7 Ohm
Recommended load impedance – >20 Ohm
Cartridge body material – ABS/Aluminium
Coil wire material – Copper
Cartridge colour – Red
Cartridge weight – 9 g

*) Typical value
