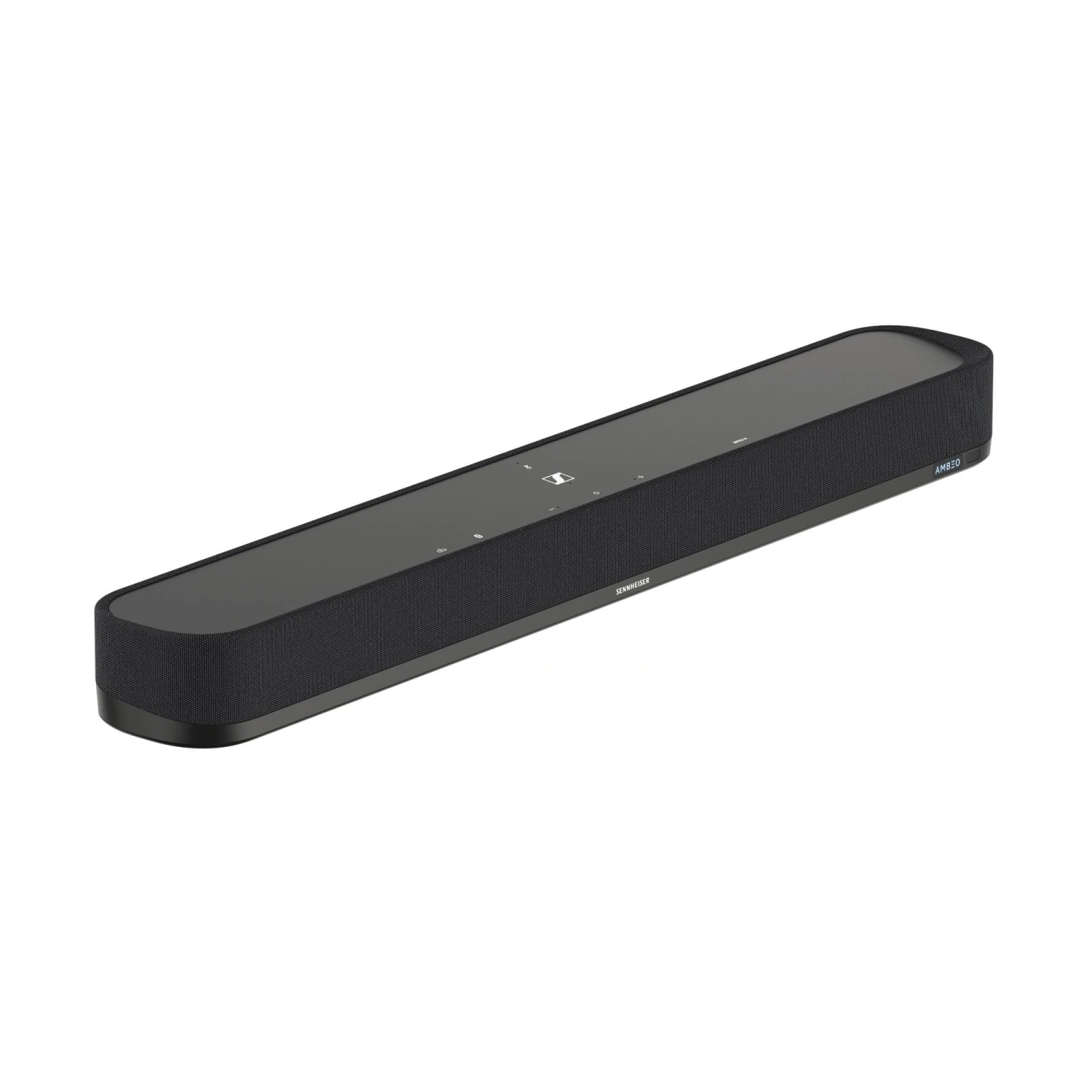

Sennheiser AMBEO Soundbar Mini

Experience the world’s most immersive sound with an all-in-one compact device that delivers cinema- and audiophile-grade quality like you’ve never heard before. Just plug it in and enjoy a movie theater atmosphere at home in no time.

Experience the world’s most immersive sound with an all-in-one compact device that delivers cinema- and audiophile-grade quality like you’ve never heard before. Just plug it in and enjoy a movie theater atmosphere at home in no time.
Fill your room with pure sound instead of cables.
Turn your living room into a movie theater and enjoy the world’s most immersive sound from a single compact device designed for film and music lovers.
The state-of-the-art AMBEO virtualization technology recreates a 7.1.4 home theater system with built-in dual-subwoofers without cluttering your room with cables and speakers. Developed in collaboration with the world leader in audio research and development, the Fraunhofer-Institute for Integrated Circuits IIS, Sennheiser’s AMBEO technology delivers end-to-end 3D audio, enabling the most natural and immersive sound experiences. The Soundbar is compatible with the latest 3D Sound experience, such as Dolby Atmos® and 360 Reality Audio.

Just sit down and let the Soundbar do all the work.
Smart self-calibration precisely learns the acoustics of your room and generates as well as positions seven virtual speakers around you, complemented by four additional overhead speakers. The Adaptive Mode scans the content being played and makes necessary adjustments to guarantee the best possible listening experience.
Upmixing of stereo content with AMBEO virtualization creates a unique, room-filling soundstage while customizable presets allow you to fine-tune the sound based on your specific preferences and needs.

A compact device, fully packed with features.
The AMBEO | OS guarantees multiple connectivity options and a smart user interface offering full compatibility with all major audio streaming services and guarantees a future-proof experience thanks to regular updates.
Advanced connectivity options include Bluetooth®, Wi-Fi, Apple AirPlay 2®, Spotify Connect, Tidal Connect and Alexa built-in and Chromecast built-in™. Additional licensed streaming services, such as TuneIn, Spotify, Deezer, or iHeartRadio, are accessible via Alexa built-in.

A smooth experience, from beginning to end.
The intuitive Smart Control App and web interface guarantee a smooth and enjoyable user experience, including multiple audio and equalizer settings besides many other functions designed to make the most out of your AMBEO Soundbar Mini.
A comprehensive onboarding through the app and an easy setup allow you to enjoy your Soundbar without the need for any complicated first steps.

Product Specifications
| Audio | |
| Woofers | 2x 4″ Cellulose Cone Driver |
| Tweeters | — |
| Fullrange | 4x 1.6” (40mm) Cellulose Cone Fullrange Driver |
| Frequency response | 43Hz – 20 Khz (-3dB) |
| Amplifier | 6x class D amplifiers |
| Total amplification power | 250W (RMS) |
| Total number of speakers | 6 |
| Connectivity | |
| Chromecast built-in, uPnP, AirPlay 2, Spotify connect, Tidal connect |
| Input | |
| HDMI TV (eARC) OUT | 1x HDMI eARC (HDMI 2.1) |
| HDMI IN | — |
| OPT IN | — |
| AUX IN | — |
| USB | 1x USB socket (type A), for power supply for accessories (external devices): 5 V ?, 1 A; |
| Controls | |
| Alexa built-In | Yes |
| Works with OK Google | Yes |
| On device controls | Yes |
| Remote | Yes |
| Smart Control App | Yes |
| Web interface | Yes |
| Network | |
| Transmission system | 2 x 2 MIMO |
| Transmission frequency (country-specific) | 2,400 MHz to 2,483.5 MHz 5,170 MHz to 5,835 MHz |
| Modulation 2.4 GHz band | CCK, DQPSK, DBPSK für DSSS, 64QAM, 16QAM, QPSK, BPSK for OFDM |
| Modulation 5 GHz band | 1024-QAM, 256-QAM, 64QAM, 16QAM, QPSK, BPSK |
| Output power | 100 mW (max) |
| WiFi | |
| WiFi standard | IEEE 802.11 a/b/g/n/ac/ax |
| Bluetooth | |
| Bluetooth version | 5.0 Classic/BLE |
| Wireless transmission to Sub | 5.2 Bluetooth Low Energy |
| Transmission frequency | 2,400 MHz to 2,483.5 MHz |
| Modulation | GFSK, p/4 DQPSK, 8DPSK |
| Profiles | A2DP, AVRCP, GATT |
| Output power | BT SOC: 10mW (max) BT Sub: 10mW (max) |
| Codec | BT SOC: AAC, SBCBT Sub: LC3 |
| Etherenet | No |
| Subwoofer SW Pre-OUT | No |
| Microphone input for room calibration | 4x built-in far field highprecision microphones |
| Product dimensions and weight | |
| Size (mm) | 700 (L) X 100(D) X 65(H) |
| Weight (g) | 3300 |
| Supported audio formats / surround formats | |
| LPCM 2 Channel | Yes |
| LPCM 5.1 Channel | Yes |
| LPCM 7.1 Channel | Yes |
| Dolby Atmos (Dolby TrueHD, Dolby Digital Plus, Music) | Yes |
| MPEG-H | Yes |
| DTS:X | Yes |
| Sony 360 Reality Audio | Yes |
| DTS-ES Discrete 6.1 | Yes |
| DTS 96/24 | Yes |
| DTS-HD (High Resolution Audio, Master Audio, LBR) | Yes |
| LPCM (2, 5.1, 7.1 channel) | Yes |
| Power | |
| Voltage range | 100–240V ~50/60Hz |
| Max ampere | Max. 2.5A |
| Standby | Max. 1.9W |
| Smart standby | — |
| Additional information | |
| Temperature range | Operation: 0 °C to +40 °C Storage: -20 °C to +70 °C |
| Relative humidity | Operation: 10 to 90 % |
Packaging Specification
| Single packaging | |
| Size (mm) | 790 (L) X 208 (D) X 135 (H) |
| Gross weight (g) | 6000 |
| WEEE weight (g) | 3500 |
| Material of single package (weight) | 622 |
| Paper/Cardboard (g) | 611 |
| Plastic (g) | 11 |
| Others (g) | 0 |
| Outer master carton | |
| Size (mm) | 808 (L) X 225 (D) X 150 (H) |
| Weight pure package (g) | 780 |
| Material of master carton (weight) | 780 |
| Paper/Cardboard (g) | 780 |
| Others (g) | 0 |
| What’s in the box | |
| AMBEO Soundbar Mini | |
| Remote control including lithium battery | |
| Premium high-speed HDMI® cable | |
| Instruction manual | |
| Power cord (country specific) |
