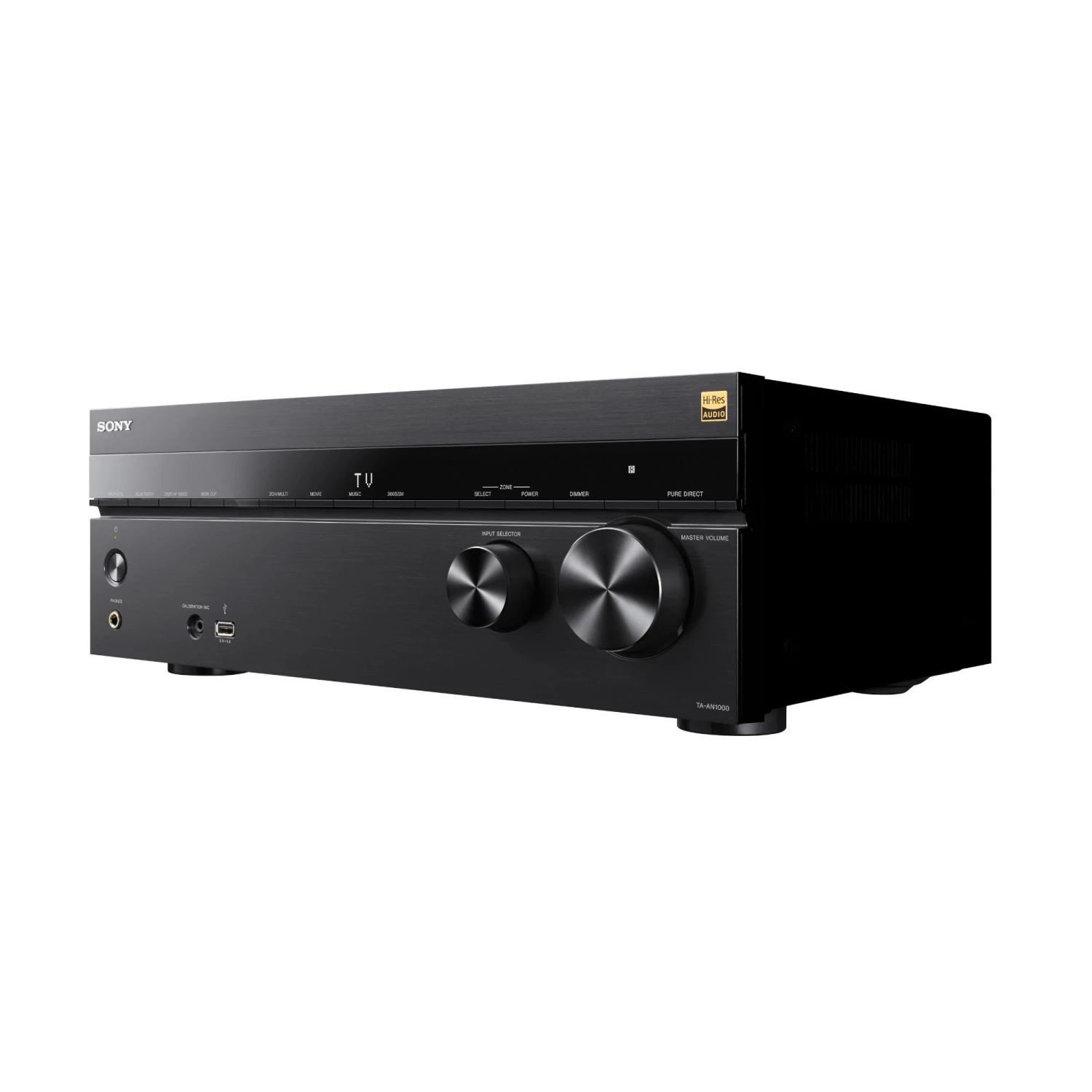

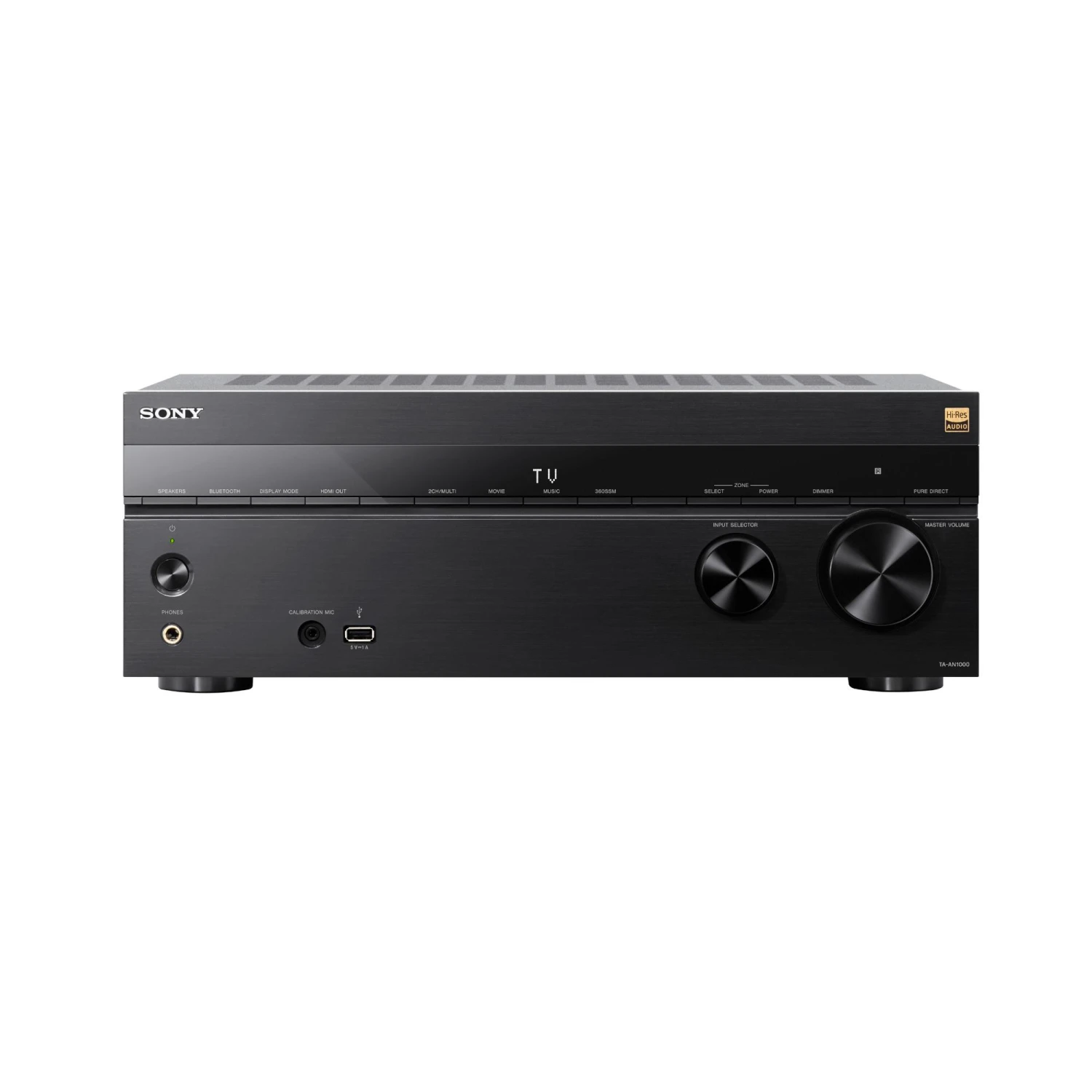

Sony TA-AN1000 AV Amplifier

Immersive 3D Audio
Experience breath-taking 8K video and immersive 3D audio with the TA-AN10000 7.2-channel 8K amplifier. Enjoy spectacular room-filling immersive sound from your 7.2 or 5.2.2 setup with Dolby Atmos and DTS:X. 360 Spatial Sound Mapping also brings unique phantom speaker technology to your audio experience, making you feel like you’re actually in the scene. Calibrate the TA-AN1000 perfectly to your living space with advanced Digital Cinema Auto Calibration IX technology. It’s never been easier to enjoy all your content thanks to Works with SONOS, Chromecast Built-in, Apple AirPlay, and Spotify Connect—all via Wi-Fi or Bluetooth.
360 Spatial Sound Mapping
360 Spatial Sound Mapping reproduces a physical sound field that adapts to your environment to create an experience that feels like your right in the movie or concert. Dolby Atmos, Dolby Atmos Height Virtualization, DTS:X, DTS Virtual: X, & DTS: X Pro additionally deliver a spectacular immersive object based surround sound experience.

Immersive 3D Audio
Experience breath-taking 8K video and immersive 3D audio with the TA-AN10000 7.2-channel 8K amplifier. Enjoy spectacular room-filling immersive sound from your 7.2 or 5.2.2 setup with Dolby Atmos and DTS:X. 360 Spatial Sound Mapping also brings unique phantom speaker technology to your audio experience, making you feel like you’re actually in the scene. Calibrate the TA-AN1000 perfectly to your living space with advanced Digital Cinema Auto Calibration IX technology. It’s never been easier to enjoy all your content thanks to Works with SONOS, Chromecast Built-in, Apple AirPlay, and Spotify Connect—all via Wi-Fi or Bluetooth.
360 Spatial Sound Mapping
360 Spatial Sound Mapping reproduces a physical sound field that adapts to your environment to create an experience that feels like your right in the movie or concert. Dolby Atmos, Dolby Atmos Height Virtualization, DTS:X, DTS Virtual: X, & DTS: X Pro additionally deliver a spectacular immersive object based surround sound experience.

8K & 4K/120
Enjoy the latest HDMI technology with support for 8K & 4K/120 video sources. Equipped with two 8K HDMI inputs and two outputs, the TA-AN1000 is capable of delivering the most stunning picture quality and amazing clarity. Connect to your BRAVIA for Acoustic Center Sync and make your TV part of the surround experience.

Realistic Picture Quality
Enjoy dynamic, realistic picture quality with support for the leading HDR formats, including Dolby Vision, HDR, Hybrid Log Gamma, and IMAX Enhanced.

Auto Calibration
Digital Cinema Auto Calibration IX precisely corrects the distance, angle, sound pressure, and frequency response of each speaker that’s connected.

Audio Streaming
Listen to all your favourite tracks easily with audio streaming via Bluetooth, Wi-Fi, Chromecast built-in, Spotify Connect, and Apple AirPlay 2. Also “Works With Sonos” makes it possible to integrate the TA-AN1000 with your new or already existing Sonos system.

Size & Weight | |
| Receiver Dimension(WxHxD mm) | 430x156x331mm |
| Receiver Weight(kg) | 10.3kg |
General Features | |
| GUI | Yes |
| Power Requirement | 230V 50/60Hz |
| AC Adaptor | – |
| Power Consumption | 240W |

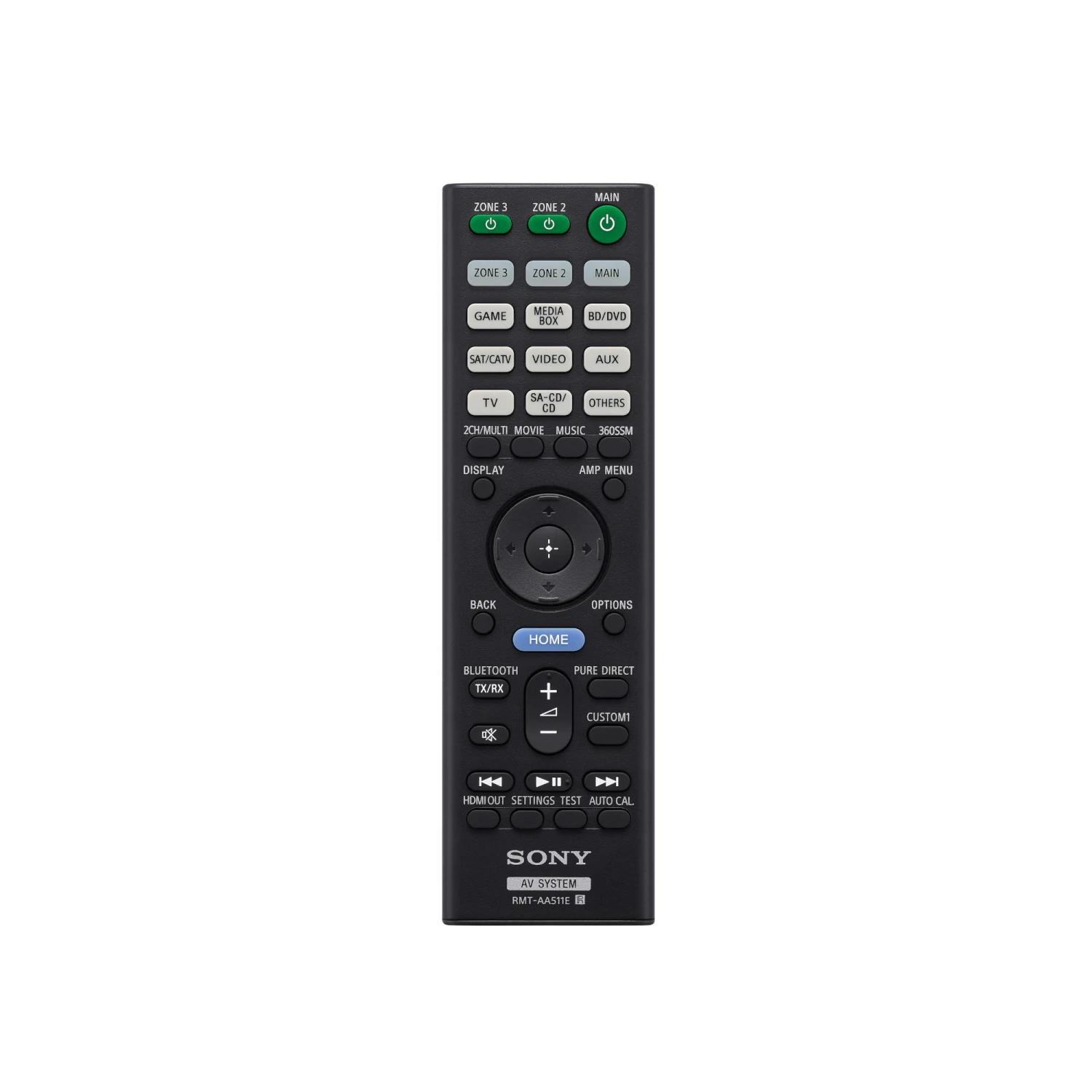

| Attachment | Calibration microphone, Calibration mic stand, Remote control, R03 (size-AAA) batteries |
Amplifier | |
| Number of amp. channels | 7ch |
| Front | 165W(6ohms, 1kHz, 1ch driven THD 0.9%) |
| Speaker Impedance | 6ohms-16ohms |
| 2ch Stereo | Yes |
| Direct | Yes |
| Auto Format Decoding | Yes |
| Multi Stereo | Yes |
| Audio Enhancer | Yes |
| Headphone 2ch | Yes |
Video Features | |
| 3D over HDMI | Yes |
| HDMI Video Output capability | 8K, 4K, 1080p, 1080/24p, Deep Color (up to 36 bit), Triluminous Color (xvYCC) |
| 4K 60p 4:4:4 Support | Yes |
| A/V SYNC | Yes(Variable) |
| Audio Return Channel | Yes |
| BRAVIA® SYNC™ (CEC Control) | Yes (System Audio Control, System Power Off, RC Pass Through, Language Follow, One-Touch Play) |
| Standby Through | Yes |
| HDR | Yes(HDR10, Hybrid Log Gamma, Dolby Vision) |
Audio Features | |
| DSD Native Playback | Yes |
| DSEE HX | – |
| Pure Direct | Yes |
| Sound Optimizer | – |
| Center Speaker Lift Up | Yes |
| Digital Legato Linear | – |
| In-Ceiling Speaker Mode | Yes |
| PHONO VOLUME OFFSET | – |
| TV VOLUME OFFSET | – |
Tuner Features | |
| FM/AM | No/No |
| Preset Channel (FM/AM) | – |
| RDS | – |

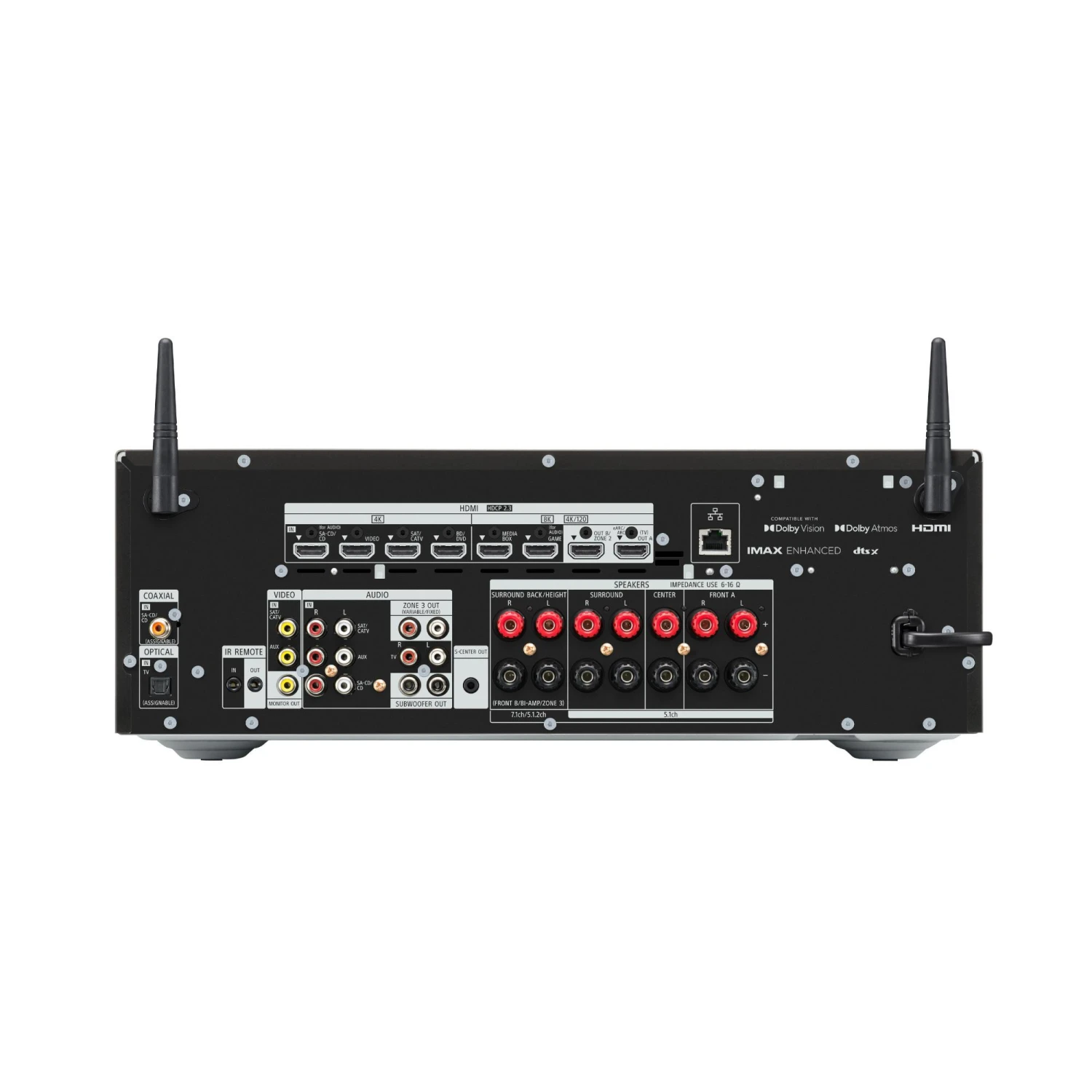

Interface | |
| HDMI Input supporting HDCP2.2(Front) | 6(0) |
| HDMI Output supporting HDCP2.2 | 2 |
| Opt | 1 |
| Coax. | 1 |
| Analog Audio In | 4 |
| Pre Out (Subwoofer) | 2 |
| Composite Monitor Out | 1 |
| Headphone Out | Yes |
| USB Front(ver) / Rear(ver) | 1/0 |
| Ethernet Port (Power over Ethernet) | 1(0) |
| Front A | Yes |
| Center | Yes |
| Surround | Yes |
| Surround Back | Yes |
| Zone2 | – |
| Height | Yes(Common with Surround Back) |
| Front B | Yes(Common with Surround Back) |
| Bi-AMP | Yes(Common with Surround Back) |
Decoding Format for HDMI | |
| DSD | Yes (Up to 2.8MHz 5.1ch) |
| LPCM | Yes (Up to 192kHz/24 bit 7.1ch) |
| Dolby Atmos | Yes |
| Dolby TrueHD/Dolby Digital Plus | Yes/Yes |
| Dolby Dual Mono | Yes |
| DTS:X | Yes |
| DTS HD MA / DTS HD HR | Yes/Yes |
| DTS / DTS-ES (Matrix6.1 / Discrete6.1) | Yes/Yes |
| DTS 96/24 | Yes |
Decoding Format for USB/Network Client | |
| DSDIFF(DSD) | Yes |
| DSF | Yes |
| WAV(LPCM) | Yes |
| AIFF(LPCM) | Yes |
| FLAC | Yes |
| ALAC | Yes |
| Music Decoding Formats | – |
Auto Speaker Calibration | |
| D.C.A.C. IX / D.C.A.C. EX / Advanced D.C.A.C. / D.C.A.C. | D.C.A.C. IX |
| Speaker Relocation | Yes |
| Phantom Surround Back | Yes |
| Automatic Phase Matching | Yes |
| Calibration Mic | Stereo |
Custom Install & Control Features | |
| 2nd A | HDMI(Fixed) |
| HDMI Zone | – |
| IR Repeat (In/Out) | Yes(1/1) |
Network Connectivity | |
| Spotify Connect | Yes |
| Bluetooth Receiver | Yes |
| Bluetooth Transmitter | Yes |
| NFC | – |
| Wi-Fi | Yes |
